Display - send data :

Allow File Read on this Device :
Allow File Delete on this Device :
Allow Live Telemetry from this Device:

List of Laptops with permission to connect :

Laptop - receive data :

List of available Displays :

Voltaic OTA Update :

Step 1 : select "BMS" or "VCU", then press "Update Firmware"

Step 2 : make sure not to overwrite Config accidentally

Step 3 : when overwriting Config, note down Activation Key

Step 4 : start OTA - wait 60 seconds

Step 5 : reconnect BLE and check Version Number

Step 6 : re-enter Activation Key if necessary

BMS

VCU

Device:

Hardware Version:

Firmware Version:

Serial Number:

VCU Activation Key :

If Key is changed or lost the VCU will be bricked.

Bluetooth Name :

select Firmware :

	Version	ID	Date	ChangeLog

Activation Key of last connected Device:

VCU Configuration:

Izecc Configuration:

---------------------------------------- General Settings :
---------------------------------------- CAN-BUS Quick Start Guide : -LED 2 shows Baud Rate. 1x=125K, 2x=250K, 3x=500K, 4x=1M! -Make sure you set the correct Baud Rate on all Devices! -Wait 10s and then restart VCU after changing Baud Rate! -Do not confuse CANH and CANL! -Check again, do not confuse CANH and CANL! -Have 60 Ohms - 240 Ohms between CANH and CANL (60 Ohm is best)! -Make sure your CAN never exceeds 60 to 70% Data Capacity! ----------------------------------------
CAN Bitrate : First wait 10s and then Power-Cycle VCU after changing Baud Rate!
CAN-Bridge TX Interval : How often new Data gets processed and send. For 200Hz Data do 4ms or 3ms, when having Issues set back to 5ms	ms
BLE Passkey: Next time you connect via BLE this is your new Passkey! If Passkey lost, connect our .apk to recover via USB (no Passkey needed).
Custom Firmware ID: Not to be changed by user!
CAN console: This does the same as the "send ALL" Button in the simple CAN Console Tile!
---------------------------------------- IMU Orientation:
Orientation ID :
Pin 0 : -locked to ADC
Pin 1 : -currently inactive
Pin 2 :
Pin 3 :
Pin 4 :
Pin 5 :
Pin 6 :
---------------------------------------- Drive and VESC Settings : All Settings below are only relevant for VCU driving behaviour and for use with VESC Open Source Project!
---------------------------------------- use VoltaicVCU with VESC Open Source : -Make sure you have the correct CAN-IDs set and saved in VESCs and VCU! -If using just one VESC use VESC 1, with two use VESC 1(L) & VESC 2(R) -Set VESC to CAN Mode "VESC"! -Enable CAN Status 1,2,3,4,5 with at least 20Hz Data rate! Best 200Hz. -Disable other Inputs in VESC like ADCs... ----------------------------------------
BlackLine Mode :
Reverse all Motors :
Reverse in - km/h :
active VESCs 1-4: -if not configured, Speed Limiting and Vehicle Speed will not work! LED 1 will start fast blinking if VESCs are missing (Status 5) and is constantly on if all expected VESCs are connected and all Status 5 are received.
Low Voltage [V] : -Low Voltage Threshold for LED 1 (slow Blinking) if active VESCs = 0 is configured it takes internal measurement, otherwise the Status 5 Battery Voltage of VESC 1
VESC 1 CAN_ID : 2WD = left ESC, 4WD = front left ESC
VESC 2 CAN_ID : 2WD = right ESC, 4WD = front right ESC
VESC 3 CAN_ID : 2WD = not in use, 4WD = back left ESC
VESC 4 CAN_ID : 2WD = not in use, 4WD = back right ESC
Trip Odometer
Vehicle Odometer
Analog 3Speed Switch : -Low Speed by pulling Pin2 to GND -High Speed by pulling Pin3 to GND -Pin2 and Pin3 will be pulled to 4.8V -Tank Turn ADCs disabled -also Low Speed if Pin2 AND Pin3 are GND
Speed Control Active : -activate your configured Speed Limits - (Acceleration Curves always active)
Low Speed Limit :	km/h
Low Current Limit :	%
Low Curve Acceleration :	%/s
Low Curve Braking :	%/s
Normal Speed Limit :	km/h
Normal Current Limit :	%
Normal Curve Acceleration :	%/s
Normal Curve Braking :	%/s
Fast Speed Limit :	km/h
Fast Current Limit :	%
Fast Curve Acceleration :	%/s
Fast Curve Braking :	%/s
enable VESC OUTPUT: — Your VESC will start turning the Motor(s)! NOT to be used without Emergency Shutoff and sufficient mechanical Braking System. VoltaicLab GmbH is not responsible for any damages caused by using this EVALUATION Device. Sufficient independent Safety Systems to overwrite VoltaicVCU commands at any time are required.
enable VESC CAN-Simulator : -This will spam VESC Status 1-5 with the VESC-Ids 101,102,103,104 on the CAN-BUS!
Overtemp-Controller Limp2 : VESC-Simulator loops : -keep below 12 loops per Cycle Time (the "10ms Time" in the Tilebar)	C°
Acceleration PhaseAmps LIMIT : -This will limit the Motor Current. So with 70% -> 100A set Motor Current in the VESC-Tool becomes 70A!	%
Brake PhaseAmps LIMIT : -This will limit the Brake Motor Current. So with 70% -> 100A set Current in the VESC-Tool becomes 70A!	%

---------------------------------------- Setup ADC Input Range : ----------------------------------------
	0% 100%
Throttle ADC Setup [mV] Pin0 :
Tankturn L ADC Setup [mV] Pin2 :
Tankturn R ADC Setup [mV] Pin3 :
Reverse ADC Setup [mV] Pin4 :
Steering L ADC Setup [mV] Pin5 :
Steering R ADC Setup [mV] Pin6 :
---------------------------------------- Km/h calibration : ----------------------------------------
Pole Pairs : VESC Speed calib :
---------------------------------------- Advanced VCU Configurations : ----------------------------------------
Exp. Throttle Curve : for TypeOfAccelerationCurve = 2/exponential this affects the curve
active ZC PhaseAmps [A] : -unused in VCU!
active ZC Current [%] : -unused in VCU!
enable experimental Antislip : -this tries to stop the wheels from spinning when only one looses grip
Acceleration Curve Modus : -choose the Acceleration Behaviour! 1. Linear throttle Standard fixed-rate limiter: changes at most rate_limit × Δt per tick Smooth, gradual ramp up/down toward target 2. Zero-cross aware Slows down near or across zero for smoother reversals Instantly snaps to zero when backing off throttle 3. Fast linear Same as Curve 1 but double the speed (2 × rate_limit) Quicker response with simple behavior 4. Instant response No rate limiting at all Output jumps directly to target every tick 5. Linear with brake bypass Limits upward changes, but allows instant drop when releasing throttle Responsive when backing off, smooth when accelerating 6. Accel/regen split + auto-zero Separate limits for accel vs. braking Instantly zeros output when pedal is released 7. Same as Curve 5 Duplicate of Curve 5 for separate mode slot or config Same responsive-down, limited-up behavior
TV Intensity 0-255 : active for steering Torque Distribution
TV Rear Front -128->127 : -unused in VCU!
---------------------------------------- Calibrate Vehicle Speed with Hall/AB Encoder: 1. First restart the Vehicle so that Pulse Counter says 0 2. Then roll forward your vehicle by exactly your set mm (User Input Distance) 3. Press calculate. It will calculate mm per Pulse for you. 4. Click anywhere to confirm changes (config turn green). Done. ----------------------------------------
Pulses: 0 Everytime your Hall sensors detect a pulse, depending on the direction of rotation, it gets added or subtracted.
User Input Distance:	mm
mm per Pulse :	mm
---------------------------------------- Blackline Temp-Protection/Custom Variables : Custom-Firmware Variables : Custom Izecc Settings : ----------------------------------------
Brake LIMIT with Brake Lever :	%
mV Value IzeccWalkMode :	mV
Overtemp-Motor Limp1 : Custom uint8 Nr. 1 :	C°
Overtemp-Motor Limp2 : Custom uint8 Nr. 2 :	C°
Overtemp-Motor Cutoff : Custom uint8 Nr. 3 :	C°
Overtemp-Controller Limp1 : Custom uint8 Nr. 4 :	C°
Overtemp-Controller Cutoff : Izecc Walk Mode Timeout : -Izecc Walk Mode Trigger time x 10ms	C°
Custom unit16 Nr. 1 :
Custom unit16 Nr. 2 :
Custom unit16 Nr. 3 :
Speed Select : -does the same as the clickable Speed Selector Gauge. 0 = Fast, 1 = Normal, 2 = Slow and 3 = off

BMS Configuration:

Settings can't be changed, please turn off first!

BMS Name : The Name displayed in the bluetooth connection dialog.
Enabled Inputs : If your BMS has more than one Relay, important that you set the right channels.	1 2 3
If a Device is powered with less parallel Batteries as intended, the Batteries can overheat and catch Fire!
Battery chemistry : The Battery Type is the chemistry of your battery. There are pre-settings for the Type. If you want your own settings Select "Pack V" or "Lithium" for more control.
Battery cells : How many of the cells of your selected chemistry your battery pack has in series.	S
Battery capacity : The Capacity of your Battery pack in mAh (total battery, not just a single strand)	mAh
Max. cell voltage : The cell voltage at which an over-voltage protection event is fired.	mV
Min. cell voltage : The cell voltage at which an under voltage protection event is fired.	mV
Pack under voltage : Under voltage Protection voltage for the whole battery pack.	V
Pack over voltage : Over voltage Protection voltage for the whole battery pack.	V
Discharge per Input : Max output (discharge) current of a single connected channel - if you want 300A combined output current and have all 3 channels enabled, this should be 100A	A
Charge per Input : Max input (charge) current of a single connected channel - if you want 99A combined charging current and have all 3 channels enabled, this should be 33A	A
Current imbalance : The difference in current that can flow between the batteries which will trigger a protection event. With identical battery packs, this current may be caused by different wire lengths or different stages of degradation inside the battery. This also checks for too high voltage difference before switching on. (max Difference = 0.5 V + 1 V per 10 A Imbalance Setting, so 40 A will allow 4,5 V Voltage Difference)	A
Detect Capacitive Load : If this checkbox is enabled the BMS will only turn on after precharging if you have a capacitive load connected. If precharge is instantaneous it will not turn on.
Shunt max temp : The shunt temperature can never exceed 110C°, otherwise the BMS will be damaged.	C°
BMS max temp : The BMS temperature can never exceed 90C°, otherwise the BMS will be damaged.	C°
Autostart : With this setting, you decide if the BMS should automatically try to turn on the channels on power up.
Auto power off : Idle time before BMS automatically turns off. Idle is defined as either not in operation mode or less than 0.5A drawn from each battery. Resets every time idle state is left.	min
Auto wakeup : enables the feature where the BMS wakes itsself up and goes to sleep again. Use the next two Settings to set the durations for that.
Wakeup interval : How long the BMS takes to go into Auto-Wake-Up to charge up your Phone-Display
Wakeup duration : this sets how long the BMS will be turned on (only the Power Supply, not the main contactor) after wakeup Interval wakes up the BMS	min
Data Frequency :
Update Count : The number of times, the configuration has been updated. This mostly serves as a confirmation that all of your changes have been correctly sent and read back— if you save the changes, this number should increase by 1.

Single Cell Monitoring:

Important Notes :

— This works together with supported isolated CAN-BMS Modules

— Configure the sequential CAN-Ids for each String (up to 3)

— Only use with additional Hardware Alert. CAN-Feature is only for DAQ

—After configuring, BMS requires a full restart to start the CAN bus

—Make sure you have the correct termination Resistors for your CAN bus

Input 1 :

First CAN ID : This will be the first CAN-Bus ID. The next 4 IDs will be sequential. For Example 54..55..56..57..58 if this setting is set to "54" (maximum 5 BMS Modules per String) This is also the same ID you will have to set in your EnnoidBMS or VESC BMS Module.
Input-1 BMS-1 : blablabla
Input-1 BMS-2 : blablabla
Input-1 BMS-3 : blablabla
Input-1 BMS-4 : blablabla
Input-1 BMS-5 : blablabla

Input 2 :

First CAN ID : This will be the first CAN-Bus ID. The next 4 IDs will be sequential. For Example 54..55..56..57..58 if this setting is set to "54" (maximum 5 BMS Modules per String) This is also the same ID you will have to set in your EnnoidBMS or VESC BMS Module.
Input-2 BMS-1 : blablabla
Input-2 BMS-2 : blablabla
Input-2 BMS-3 : blablabla
Input-2 BMS-4 : blablabla
Input-2 BMS-5 : blablabla

Input 3 :

First CAN ID : This will be the first CAN-Bus ID. The next 4 IDs will be sequential. For Example 54..55..56..57..58 if this setting is set to "54" (maximum 5 BMS Modules per String) This is also the same ID you will have to set in your EnnoidBMS or VESC BMS Module.
Input-3 BMS-1 : blablabla
Input-3 BMS-2 : blablabla
Input-3 BMS-3 : blablabla
Input-3 BMS-4 : blablabla
Input-3 BMS-5 : blablabla

Logging Settings

add entire .dbc files :

configure available Signals :
( available = at least one Signal received since App Launch )

Selected : 0

( Live = Signal received in the last 3s )

Data Distribution:

File Name	Size	download	delete

Mapping Table :

Available Data :

Advanced DBC Features:

In order to use CAN signals in a meaningful way, they must be converted into a human-readable format. This is achieved with the help of one or more DBC files that can be imported into the Voltaic Interface.

The values on the CAN bus are read according to the parameters of the DBC file. This means that they receive an offset, are scaled, the data type is taken into account and you tell the interface how many digits you expect so it can display the Value in the right format.

How to do that :

Based on experience, a DBC File has a hard life and sometimes does contain some intentional and unintentional errors, therefore we have left open the possibility to specify the parameters of the DBC file separately for the Voltaic Interface. This is done in the signal description of the individual signals; at any point in the description, a block with the following format can be inserted:

|Voltaic:[CONTENT]|

Where [CONTENT] should, of course, be replaced with your own content (without the "[ ]"). This content can contain one or more of the following parameters, each separated by a comma ( , ). The order is irrelevant:

name=[dataDistribution name for signal mapping]
type=[datatype]
factor=[factor to multiply with]
offset=[Offset (added after factor multiply)]
startBit=[Position of the first data bit of the signal]
unit=[unit shown in the gauges (max. 3 letters)]
displayName=[display Name inside the Gauges]
min=[minimal Value expected (example -99)]
max=[maximal Value expected (example 999)]
decPlaces=[decimal Places after the comma]

(the last 3 are important for the dynamic sizing of the values inside the gauges - default is 5 digits)
Example of a valid Block :

|Voltaic:name=signalXYZ,min=10,max=99,factor=2|

The parameters set in the “Voltaic Description” override the actual values of the DBC file in the Voltaic Interface. For example, if the signal is named “test333” and its description contains |Voltaic:name=test444|, the interface treats the signal as named “test444”. The same applies to all other parameters.

Voltaic Interface

You are currently using Voltaic Interface Version :

Here you can set your active Interface Mode, customize your Style, Live-Data averaging and activate cool Features.

Optimizations and Contact :

-Restart while connected to the Internet to check for new Updates

— Only use high Hz Data with a strong Phone/Device (more than 50Hz per Value)

— Feel free to contact us with Suggestions and Ideas! : info@voltaic.de

— If you want to contact the Lead Developer of this PWA or if you are interested in development or discussing technical topics, e-mail me! hi@p3h3.de

Config ID
Data Type
Payload
Send Debugging Packet

Mode :
Interface Mode :
Mode Selector :
Ask for Mode on Startup :
Full Screen Gauges :
Rotate 90° :
Bitmap Font :
ㅤ
Colors :
Text Color
Background Color
Accent Color
Film Video Tiles
ㅤ
Live Values :
BMS Voltages	s
BMS Currents	s
BMS Temps.	s
BMS Calibration	s
Tacho Speed	s
Tacho Temps.	s
SOC load comp.	mΩ
ㅤ
Durations :
Historic Min/Max Values Duration	s
ㅤ
Performance :
Gui-FPS	FPS
ㅤ
Features :
Simulate all DBCs
Simulate Frequency	Hz
Screen always ON
Stop Values in Background
Dev Tool - Gauge Mover

Pin0-Throttle ADC	Pin1-Throttle DAC	Break	Reverse
ADC only0.000V	DAC only0.000V	StateLOW off GND	StateLOW off GND

Choose Mode

Every Mode has its own Gauges which can be mapped / moved individually!

For use with VESC Open Source Project

VESC Default

VESC Voltaic

Development

For use as Data Logger / Dashboard

DBC-Files

Formula Student 1

Formula Student 2

Formula Student 3

For all other usages

Default Mode

For Android and Data over USB, install our .apk

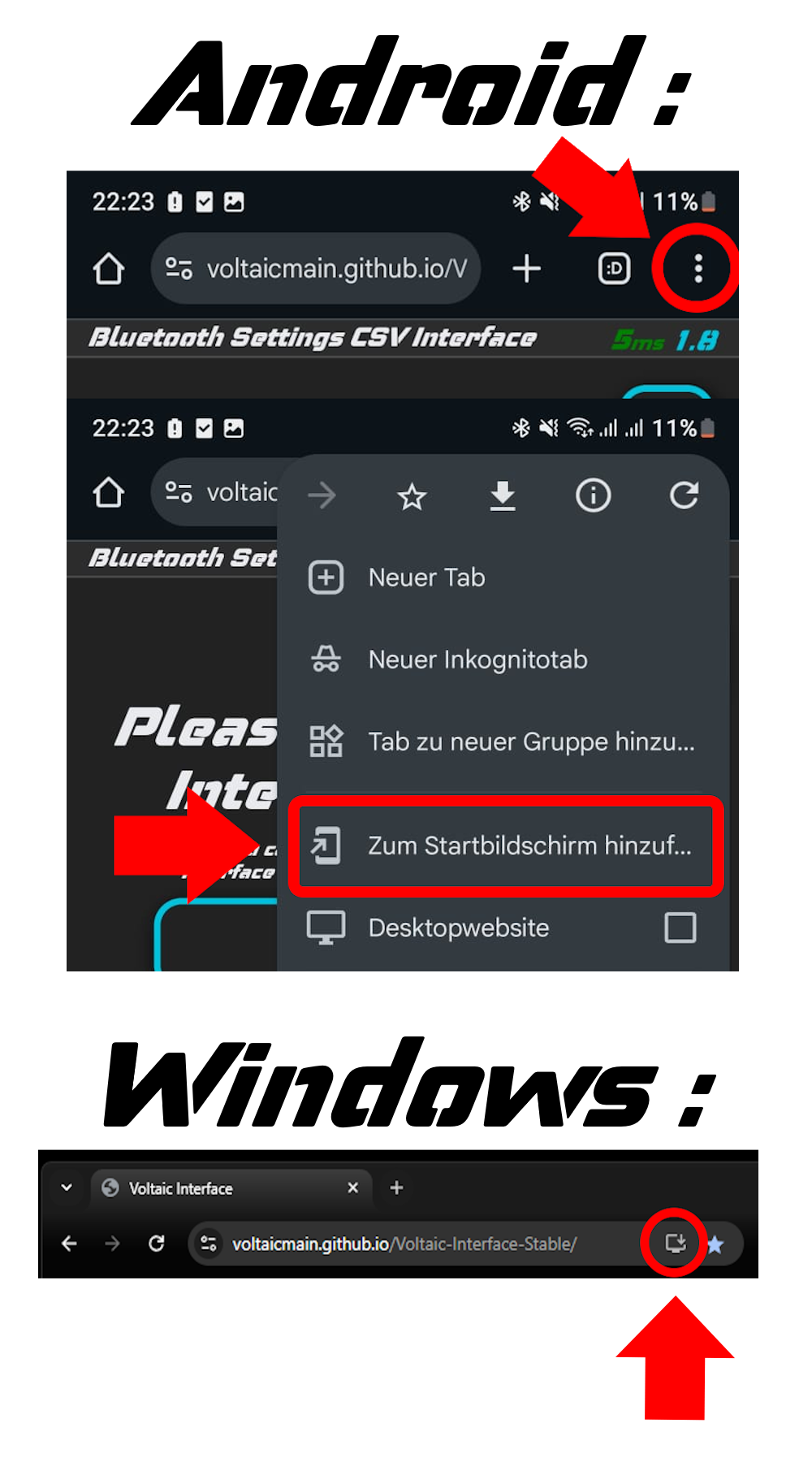

Don't use in Browser. Install as App :

Currently iOS is not supported. Use a Android/Windows/MacOS Device

This Browser is not supported. Insert this Link into your Chrome Browser and download the PWA

PROTOTYPE

ConnectVoltaicBMS

ConnectVoltaicVCU

ConnectIzecc

What do you need? :

-Android/Linux/Windows/MacOS/ChromeOS

-Google Chrome (or use .apk)

-You can use the Interface in the Brosweror download it as an App (to use it offline)

-Bluetooth 4.2 or later (BLE)

-If you have problems, update Chrome

Thanks for using our Products!

Reload App

Interface mode changed to :

Default

Interface mode changed to :

Voltaic4x4

Interface mode changed to :

VESC

Interface mode changed to :

FS 1

Interface mode changed to :

FS 2

Interface mode changed to :

FS 3

Interface mode changed to :

DBC-Files

Interface mode changed to :

Dev

PerformingUpdate...

Do not unplug Device or close App and wait 30 seconds!

OTA Updatesucessfull

Standby

If OTA does not start after 20 seconds, reload and try again

Reload App

Back to App

PerformingPost-Processing...

Standby

Choose your Data

Note : Logging will pause when Tab or App is in Background.

Display - send data :

Laptop - receive data :

Voltaic OTA Update :

Step 1 : select "BMS" or "VCU", then press "Update Firmware"

Step 2 : make sure not to overwrite Config accidentally

Step 3 : when overwriting Config, note down Activation Key

Step 4 : start OTA - wait 60 seconds

Step 5 : reconnect BLE and check Version Number

Step 6 : re-enter Activation Key if necessary

BMS

VCU

VCU Activation Key :

If Key is changed or lost the VCU will be bricked.

Bluetooth Name :

select Firmware :

OTA Update not supported

Currently the .apk does not support OTA Updates, to run an OTA Update use the Chrome PWA (Progressive Web App) in Android, Windows or macOS.

Activation Key of last connected Device:

VCU Configuration:

Izecc Configuration:

----------------------------------------

General Settings :

----------------------------------------

CAN-BUS Quick Start Guide :

Connect
VoltaicBMS

Connect
VoltaicVCU

Connect
Izecc

-You can use the Interface in the Broswer
or download it as an App (to use it offline)

Performing
Update...

OTA Update
sucessfull

Performing
Post-Processing...

-Low Speed by pulling Pin2 to GND
-High Speed by pulling Pin3 to GND
-Pin2 and Pin3 will be pulled to 4.8V
-Tank Turn ADCs disabled
-also Low Speed if Pin2 AND Pin3 are GND
